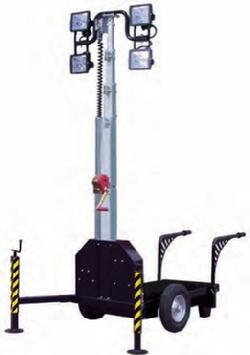

- Maximum height 5,5 meters - Telescopic stainless steel mast - Adjustable in height stabilizers - Manual winch with automatic brake, maximum load 350 kg - Stainless steel raising/lowering cable 133 wires - Lamps complete with bulb - The extreme lightness means easy handling and reduced transport costs - Trolley complete of wheels and handles - Possibility to apply a generating set inside the trolley - Wind stability 80 Km/h

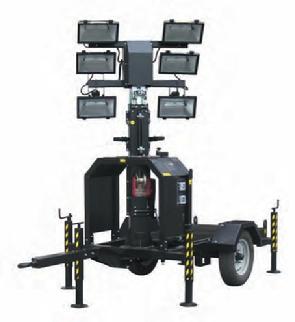

JDLM90-HA (4X1000W) MECHANICAL
CHARACTERISTICS
- Maximum height 9 meters - 330° manual rotation of the tower - Galvanized telescopic mast with 20micron of material guaranteed in eternal for outdoor application with 7 sections - Lighting tower mounted on a single axle slow trailer. (Optional: Road Trailer) - 2 roads tyres complete of mudguards - Structure ideal for building application - Eyelets for towing the complete structure - Special rings and pockets to permit an easy actions of the tower with crane and forklift - Certified at a maximum wind speed of 80Km/h - On/Off switches for each lamp - Lamps complete with bulbs - Adjustable floodlights around the vertical and horizontal position - Coiled cable complete of housing for feeding the floodlights - Spirit levels on each side for checking the perfect implantation of the tower on earth - 4 rugged stabilizers adjustable in height

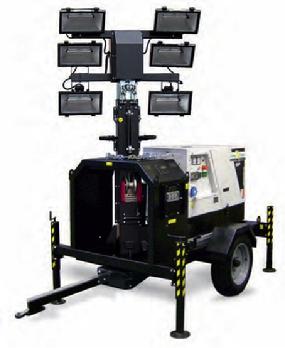

JDLMM 90-HA/P (4X1000W) INCL 9KVA GENSET
CHARACTERISTICS
- Maximum height 9 m - Galvanized telescopic mast - 4 adjustable stabilizers - Manual lifting system with winch complete of auto-braking system - Tower routable by hand at 340° - Wind stability until 80 km/h - Electrical coiled cable complete with housing - On/Off swiches one for each two lamps - Lamps complete of bulb - Structure assembled on slow trailer without brakes single axle.(Optional: Road Trailer) - 57 litres long run fuel tank - 9 kVA super silent generating set 90Lwa 1500rpm Perkins or Yanmar diesel engine - 3KVA -230V -16A outlet with circuit breaker protection
HYDRAULIC JDLM90-MH
JDLMH 90-MH HYDRAULIC INCL GENSET 9KVA
Independent solutions to be coupled to a generator or external network
Solutions for Military Applications
Special solutions on request
